Determining the drying performance depends on many factors. It is not a simple matter of assigning explicit values, even to a specific model of dryer. The diversity of the technologies used, raw materials and fuels, the relative relationship of the initial and the final moisture content of the material being dried will all have a measurable impact on the final result.Trust our experience. For each individual project we can make the necessary calculations according to your needs and in order to meet any state requirements.
Assuming that the material is sawdust containing, typically, 50% moisture before the drying process begins and the final moisture content desired is 10%, the performance of the selected models of drum dryers is as follows:
M-829 - from 800 to 1200 kg/h
M-801-SB-1,5 - from 1500 to 2500 kg/h
M-812-SBW-3 - from 4000 to 5000 kg/h
TANDEM - from 4000 to 5000 kg/h
DRUM DRYERS

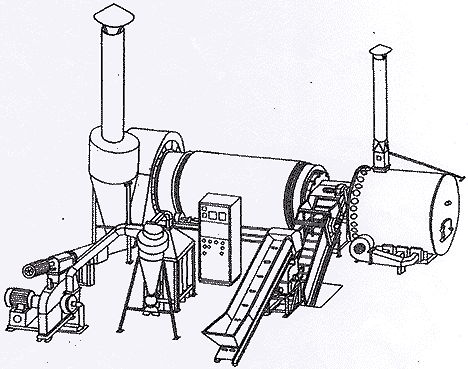

- DRUM DRYER M-829
* WITH SCREEN-PLATE DRUM
* WITH THREE-WAY DRUM
- DRUM DRYER M-801, M-804, M-843-SB-1,5

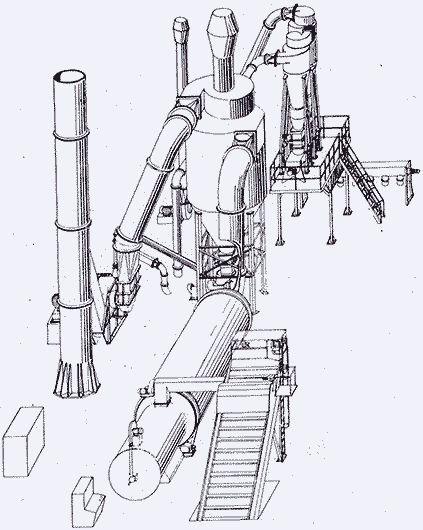

- DRUM DRYER M-812-SBU-3

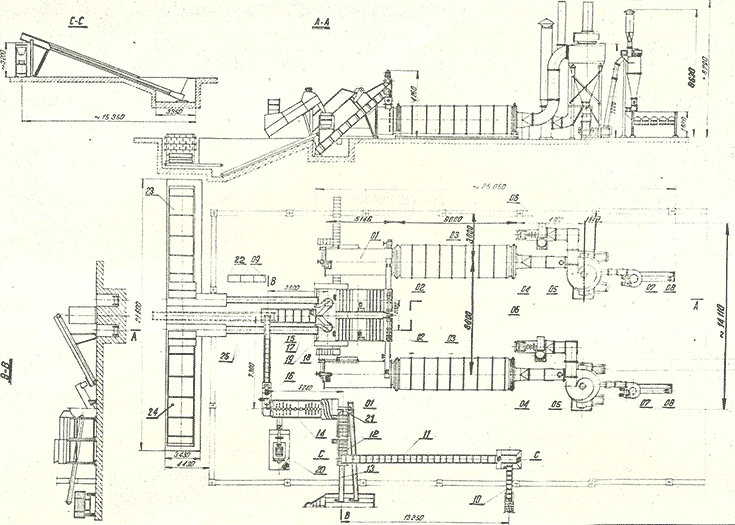

- DRUM DRYER "TANDEM"
The drum dryer is designed for drying treatments on the following green fodder: grass, alfalfa, clover, corn, rye, barley and other similar produce and is then pre-cut into chaff to a length of 30mm. It is also possible to feed the dried grain into an additional cooler which is also used for loading onto a trailer.
The advantages of using the dryer for drying green fodder is the relative small loss of nutrients when compared to traditional methods of harvesting and the independence from weather conditions.
Construction of the dryer allows you to operate it outdoors and does not require any special investment.
The drum dryer can be used to dry green fodder such as grass, alfalfa, clover, rye, barley, corn and a mixture of different types of green fodder. When combined with the appropriate equipment that list can include root crops, especially beets, potatoes and carrots. In exceptional cases, you can also dry feed grain.
ROOFED DRYERS FOR GRAINS AND CORN

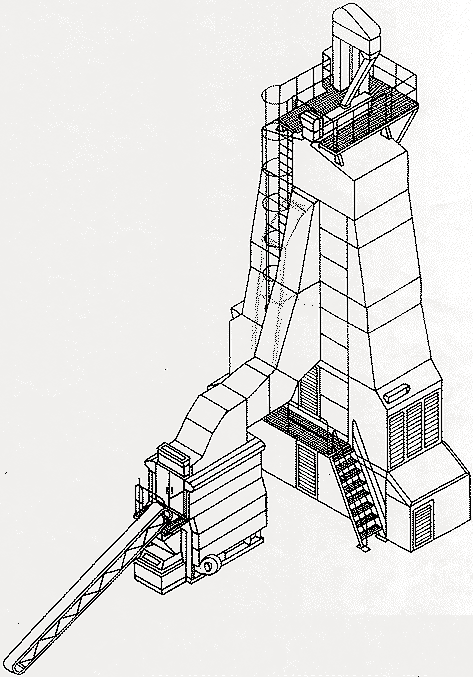

- DRYERS M-817, M-820, M-840
The roofed dryer M -817 is used for drying grain of the four major cereals, pulses and oilseeds, maize, rice and others.
The drying process takes place continuously and is carried out with clean, heated air by a process of convection.
The parameters of the heated air are set appropriately (temperature, amount) to allow the drying of the seed and consumable products.
FURNACES AND HEAT EXCHANGERS

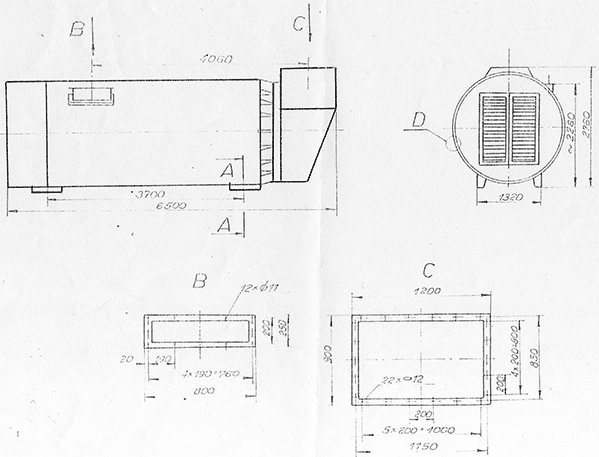

- GAS AND OIL (LIQUID FUEL) FURNACES
- FURNACES WITH HEAT EXCHANGERS AND WITHOUT INTERCOOLER
- FURNACE FOR WOODCHIPS AND SHREDDED STRAW PELLETS
- FURNACE FOR BURNING WOOD POLLEN, FRUIT POLLEN, ETC.
- HEAT EXCHANGERS
GRANULATORS AND BRIQUETTING MACHINES
The press is designed for the briquetting and pelleting of feed materials.
Briquetting and pelletizing the pressing process provides complete mechanization of the entire process of harvesting and storing of feed.
CONTROL CABINET
WE BUILD CONTROL CABINETS FOR ROOFED DRYERS AND CHEVRON DRUM DRYERS

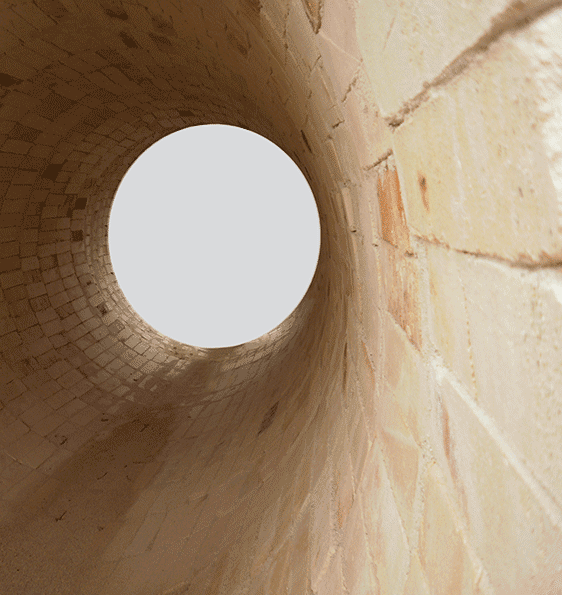

FURNACE LININGS
WE LINE DRYING KILNS
TRAINING
WE PROVIDE TRAINING FOR THE OPERATION OF DRUM AND ROOFED DRYERS
